*Overseas model shown without Quadbar OPD installed. National ride away prices are inclusive of freight to your local dealer and dealer pre-delivery charges. Excludes Regional WA dealers.
With the simplicity of a carburetor and the reliability of an air- and oil-cooled engine, the KYMCO MXU 400 is the number one choice for Aussie farmers. Practical power delivered through a CVT automatic transmission with selectable high/low range for flexible work speeds. Independent suspension all-round and push button-selectable 2WD/4WD will keep you moving no matter the terrain. Bulletproof reliability – simplicity at its best.
Reliable Four-Stroke Engine
Air/oil-cooled four-stroke engine with a 4-valve SOHC design delivers dependable performance and proven reliability.
Simplicity of a Carburettor
Keihin carburettor provides straightforward operation, easy maintenance and trusted reliability.
High / Low Range Selector
CVT automatic transmission with selectable high and low range adapts to varying terrain and workloads.
Active Engine Braking
Active engine braking assists with speed control and provides greater confidence on descents.
Selectable Drive Modes
Push-button selectable 2WD and 4WD systems provide the traction needed to tackle changing conditions.
Easy Electric Start
Electric start system ensures simple, reliable starting every time.
Superior Braking Performance
Front and rear linked hydraulic disc brakes deliver powerful, controlled and consistent stopping performance.
Park Brake
Integrated parking brake helps keep the vehicle secure when stationary.
Broad Halogen Lighting
Twin front halogen headlights with high and low beam provide excellent visibility in low-light conditions.
Strong Front and Rear Carry Racks
Heavy-duty front and rear cargo racks provide practical carrying capacity for tools, equipment and supplies.

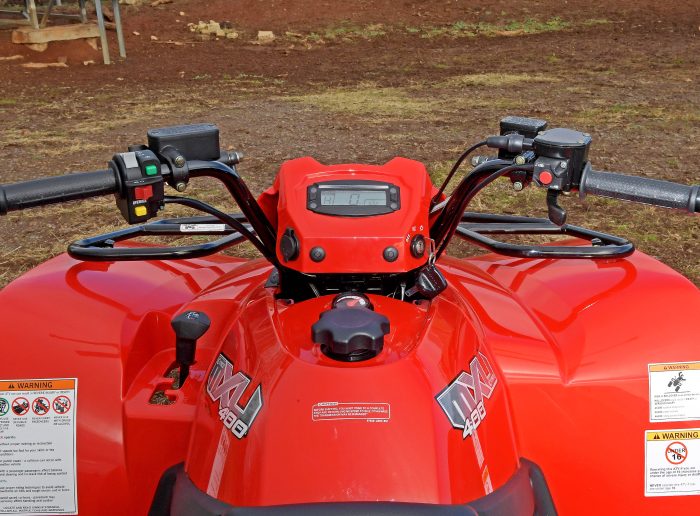

Straightforward Instrumentation
Backlit digital dashboard features a speedometer, clock, trip meter, fuel gauge and temperature indicator for easy monitoring.
Front and Rear Independent Suspension
Dual A-arm independent front and rear suspension provides 10.5 inches of ground clearance and excellent off-road capability.
Adjustable Shock Absorbers
Adjustable shock absorbers with 7 inches of travel deliver stable handling and enhanced rider comfort.
Durable Steel Wheels
12-inch steel wheels offer exceptional durability and are easy to maintain.
Convenient 12V DC Outlet
Sealed 12V DC outlet allows convenient charging of devices or operation of auxiliary accessories.
Large Fuel Tank
Large 15-litre fuel tank provides extended range and fewer refuelling stops.
Increased Tyre Size
Large 24×8-12 front and 24×10-12 rear tyres deliver excellent traction across a variety of terrains.
Underbody Skid Plates
Front brush guard and underbody skid plates help protect critical components from rocks and debris.
Deep Under-Seat Storage
Secure under-seat storage provides additional space for tools, equipment and personal items.
Factory Warranty
Three-year factory warranty program* is supported by a nationwide dealer network for added peace of mind.
| Engine | SOHC, air/oil cooled four-stroke |
| Displacement | 367cc |
| Power | 20 HP @ 6500 RPM |
| Bore x stroke | 81 x 71.2mm |
| Compression ratio | 9.2:1 |
| Fuel system | Carburetor |
| Ignition | ECU |
| Starting system | Electric |
| Transmission | CVT automatic with dual range and reverse gear |
| Final drive | Push button-selectable 4WD, shaft |
| Front suspension | Independent dual A-arm with twin shock absorbers |
| Rear suspension | Independent dual A-arm with twin shock absorbers |
| Front tyre size | 24 x 8 – 12 inch |
| Rear tyre size | 24 x 10 – 12 inch |
| Front brake | Hydraulic disc |
| Rear brake | Hydraulic disc |
| Capacity | |
| Carrying | 34kg front and 68kg rear |
| Towing | 447kg |
| Length | 2123mm |
| Width | 1102mm |
| Height | 1192mm |
| Wheelbase | 1217mm |
| Seat height | 843mm |
| Ground clearance | 268mm |
| Fuel capacity | 15 litres |
| Dry weight | 276kg |
| OTHER | |
| Colour | Red |
| Warranty | Three-year factory program* |
*KYMCO products are supported by our three-year factory warranty program. The program provides warranty for a period of two years from the date of purchase. However, if you have your vehicle serviced exclusively at an authorised dealer and retain an accurate service history, you may be eligible for a further one year extension. For more details, contact your local KYMCO dealer.
